The advancement of computer hardware and graphics technology has unlocked tremendous potential for the construction industry by transitioning from 2D drawings to 3D models. This evolution led to the emergence of BIM, establishing it as an efficient process for project execution.
The 3D BIM model enables multiple stakeholders to collaborate on a single model, extract and synchronize 2D drawings with the 3D model. Additionally, it facilitates simulation, analysis, and design optimization before construction begins.
The BIM process delivers undeniable value to projects, especially in terms of information management. As a result, a vast amount of data is generated, including records of discussions, submissions, and update processes,... this data also becomes a valuable asset that investors need to retain.
To manage this vast amount of information, combined with the rapid advancement of cloud computing, Common Data Environment (CDE) platforms have emerged. These platforms ensure that all data is systematically stored in a single, reliable source (Single Source of Truth), enabling seamless handover to investors and efficient data retrieval.
The investor owns a Digital Twin of the project, which includes the as-built model and all critical information updated throughout each phase.
Connected BIM= BIM+ CDE

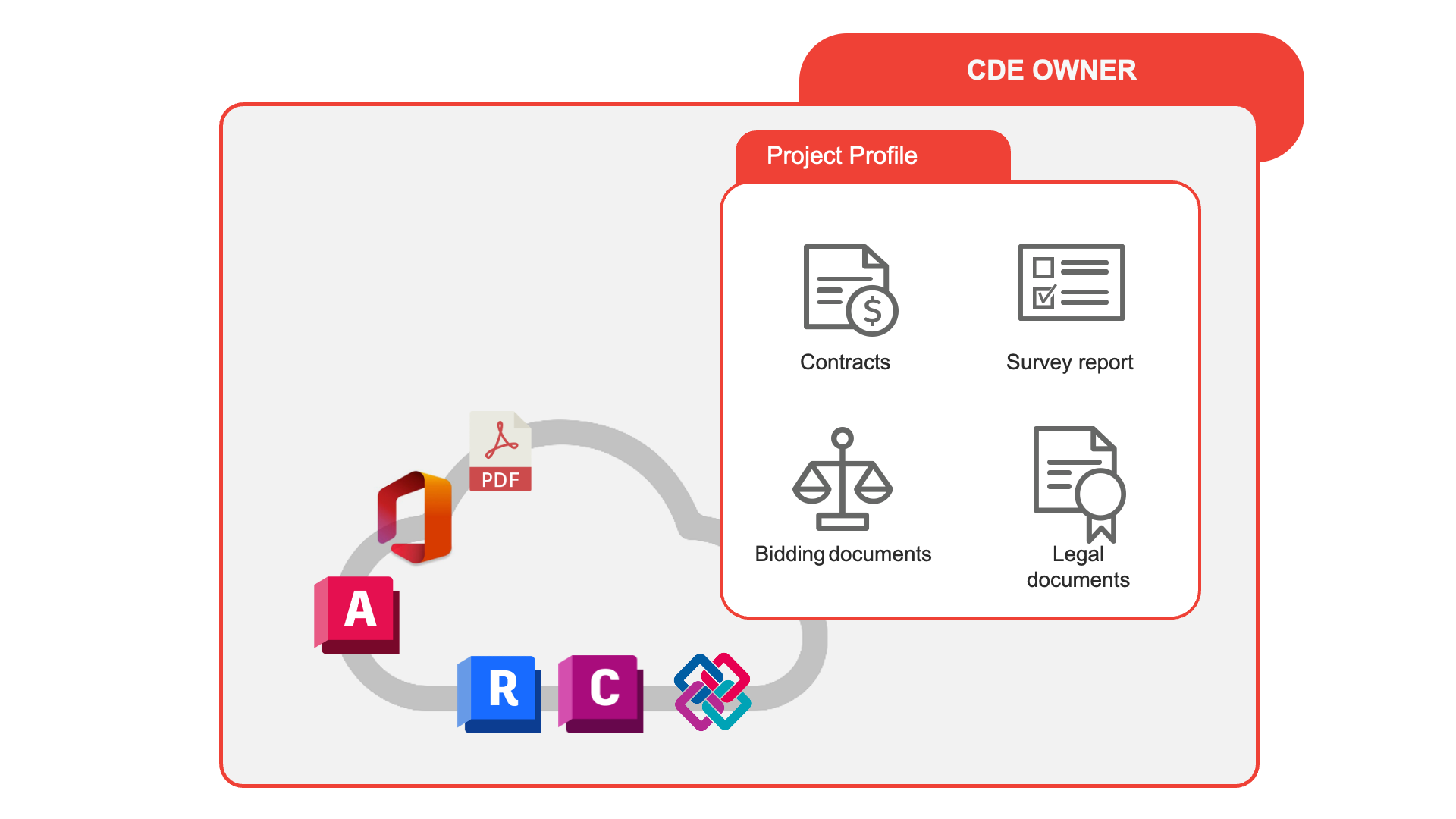

The invester will initiate a new project on their CDE Site, set up directories, and assign access permissions for departments to participate in the CDE. This ensures that project data is delivered to the right people at the right time.
Establishing digital approval workflows allows data to pass through review stages and be stored in the release folder after the final approval.

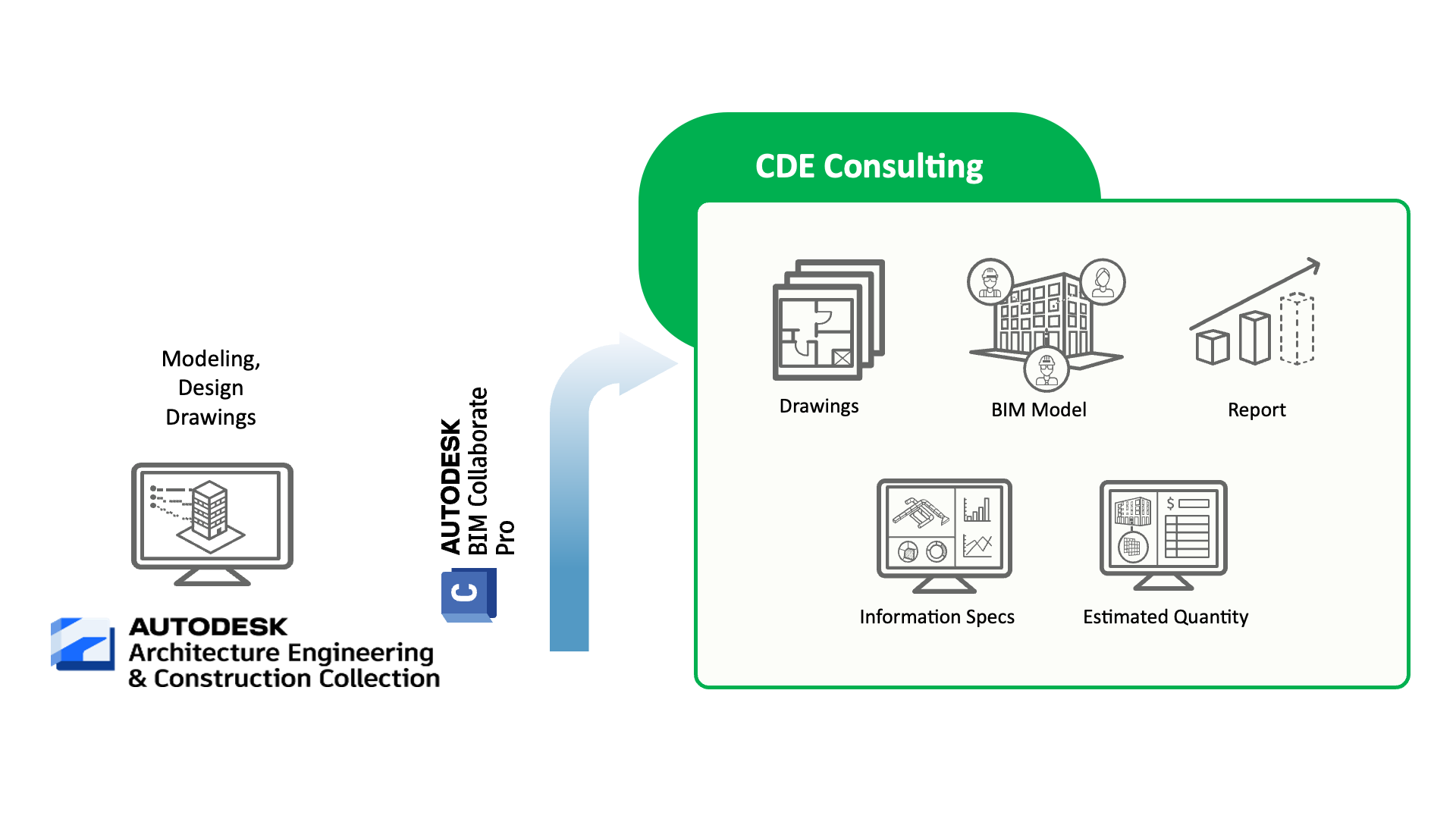

The design consultants will work and synchronize their models on their CDE, collaborating with other consultants (if applicable) to create a complete set of documents that meet the investor's requirements.

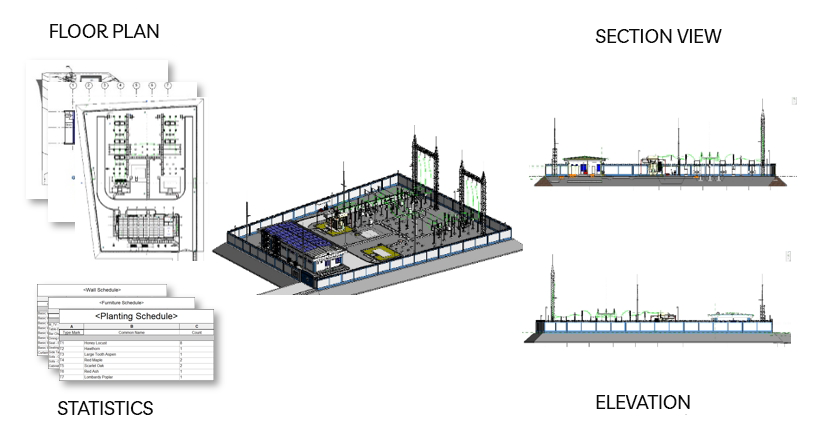

The CDE facilitates model synchronization from design software such as Revit and Civil 3D into a unified storage environment. This ensures data integrity, version control, and seamless collaboration.
.png)
The investor creates dedicated folders on their CDE to store design documents and grants access permissions for the design consultants to synchronize files.

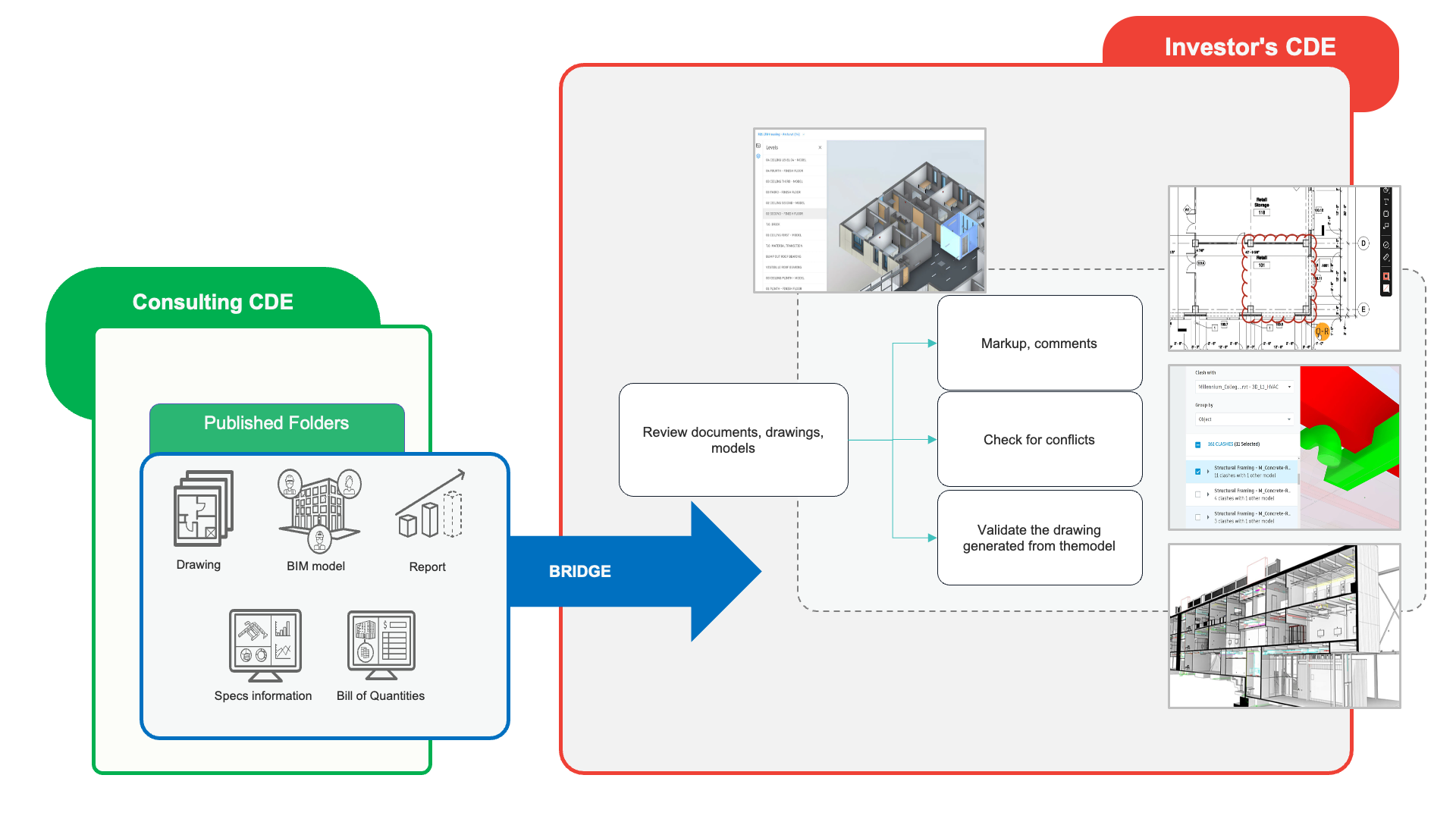

The investor can directly use the CDE via a web platform to review documents, including 2D drawings and 3D models. They can also check for model conflicts, validate drawings generated from models, and compare changes between file versions.

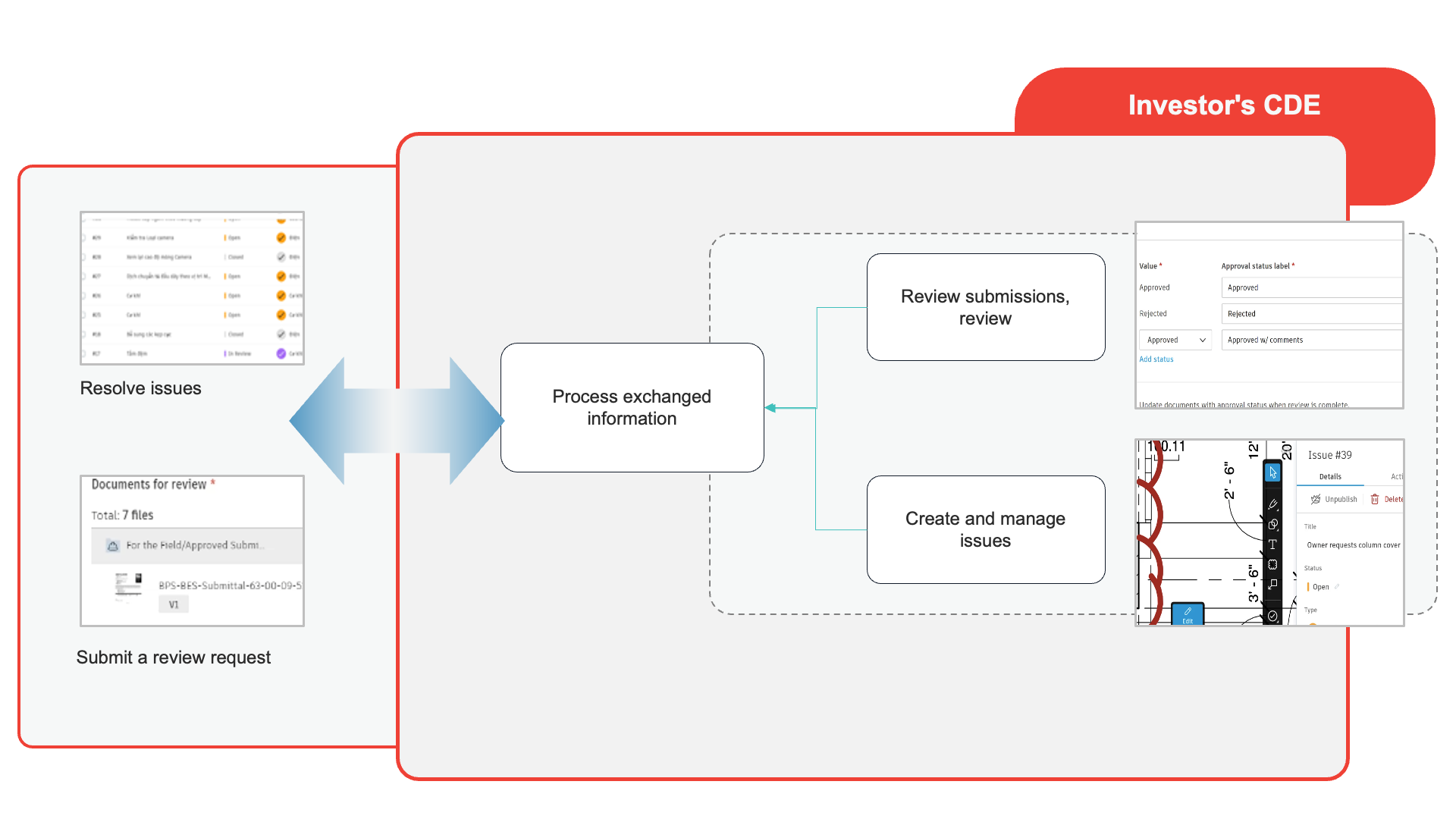

After reviewing and approving the documents, the investor can use issue-tracking tools to create issues with markups and send feedback to the design consultants.
All discussions are stored in a centralized environment, allowing stakeholders to track update statuses efficiently.
The construction phase involves multiple stakeholders, leading to numerous overlapping information flows. Managing and controlling information during this stage is crucial and challenging.

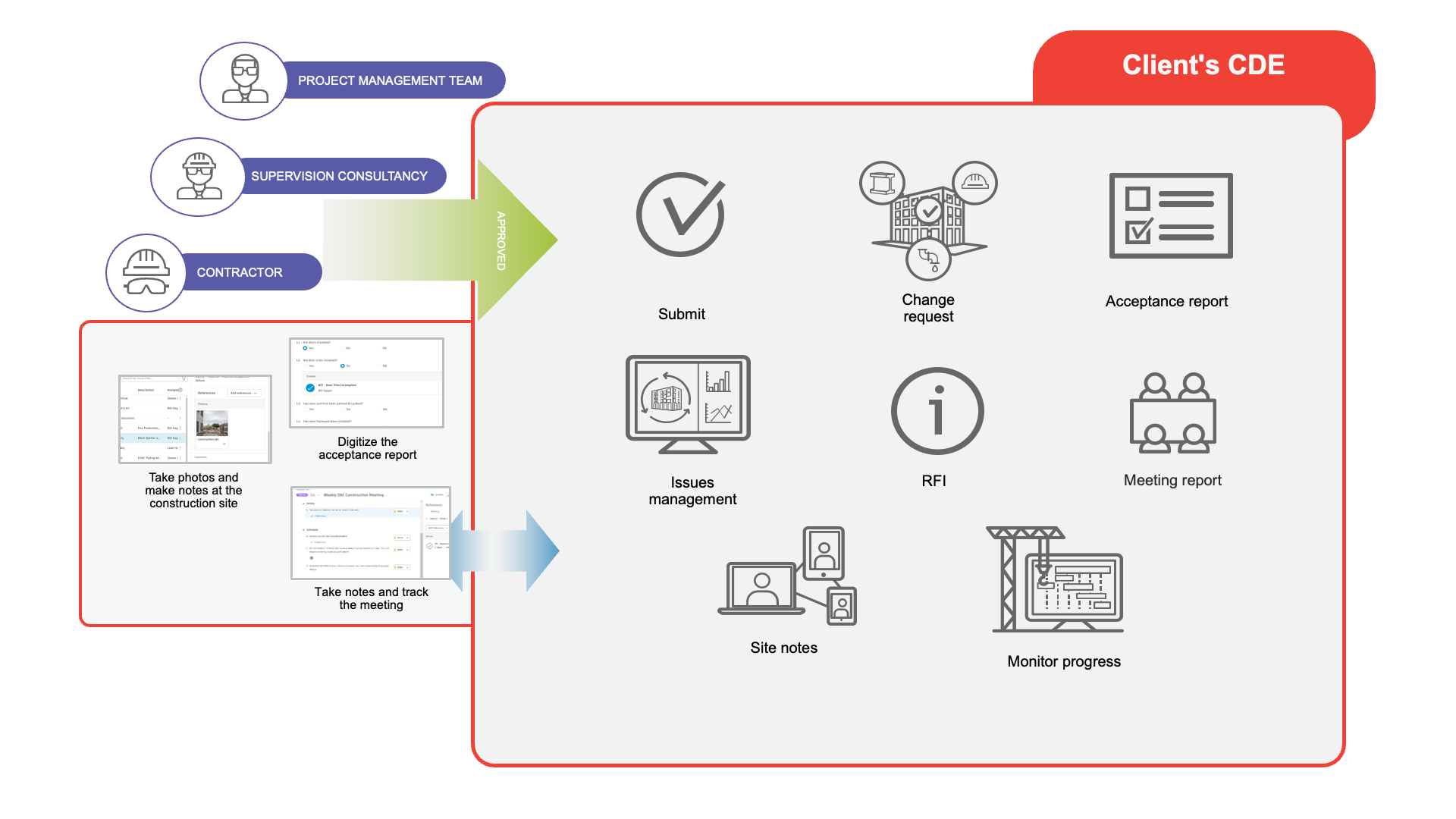

The CDE provides a connected environment for managing issues, RFIs, meetings, and submissions, enabling project progress tracking and seamless information synchronization between the office and the construction site.
At this stage, the contractor and other construction-related entities will join the CDE to update and manage project-related information.

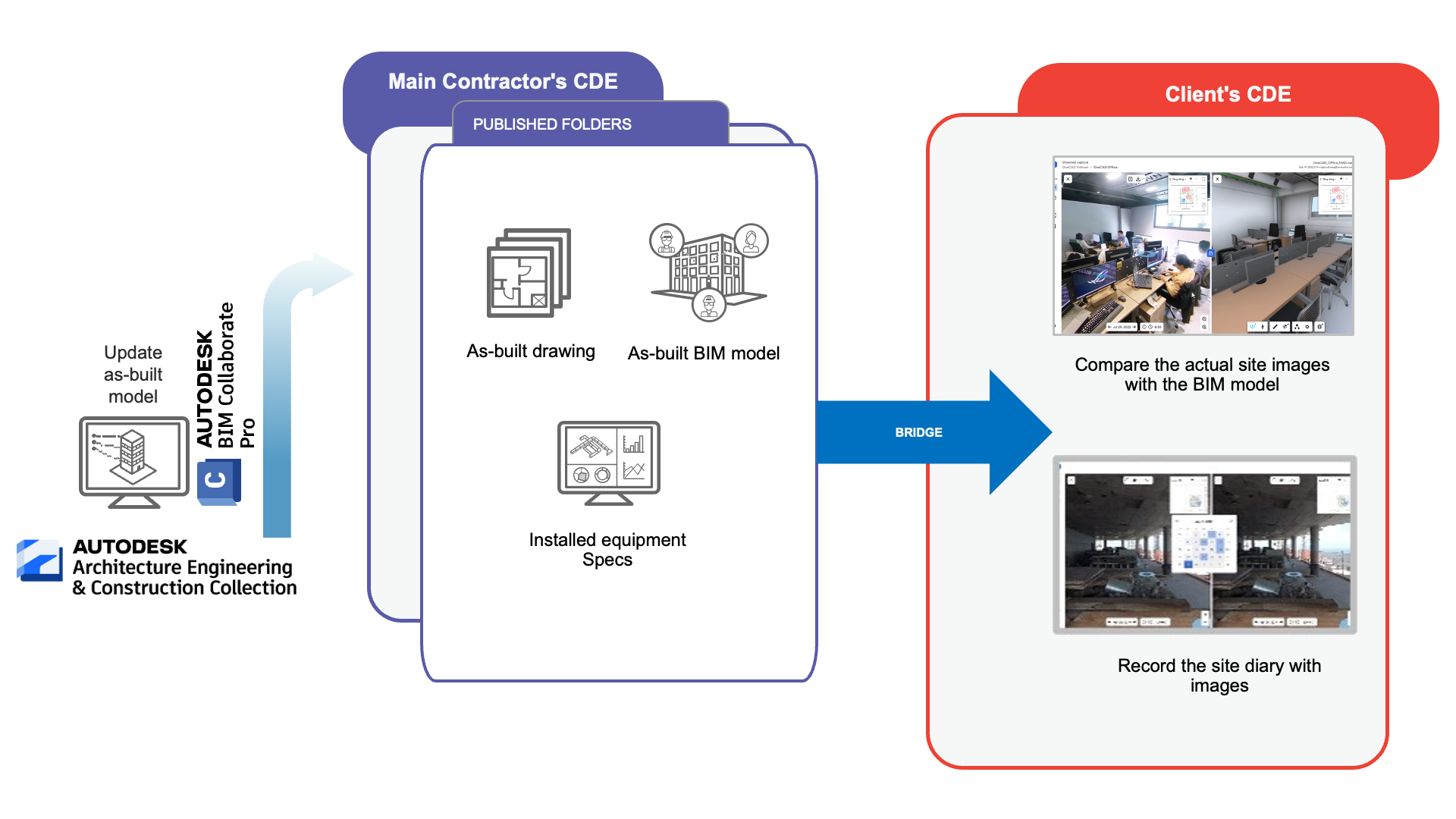

The as-built model and documentation can be continuously updated throughout the construction process. The project can also integrate solutions to record site progress with visual logs and compare these images with the BIM model.
The handover of as-built documentation and project closure becomes much simpler with CDE implementation, as all required data has been systematically updated throughout the process.
The investor owns a digital twin of the project, serving as the foundation for asset management during the operational phase.
The investor implements the as-built model received during the handover phase into an asset management system based on BIM.
The system will assist The investor and operations management teams in leveraging both geometric and non-geometric information from the BIM model, while also allowing for the addition of new data throughout the operational phase.
Cloud-based document management and common data environment. Autodesk Docs is now available in the AEC Collection or as a standalone product.
BIM Collaborate Pro enables project teams to organize, execute design intent, and assess constructability by managing the entire coordination and design collaboration process on a single platform.
Autodesk Build is a cloud-based platform accessible from any device, enabling project teams to collaborate and stay connected regardless of their location.
